Permanent magnet / Neodymium / Other / Segment

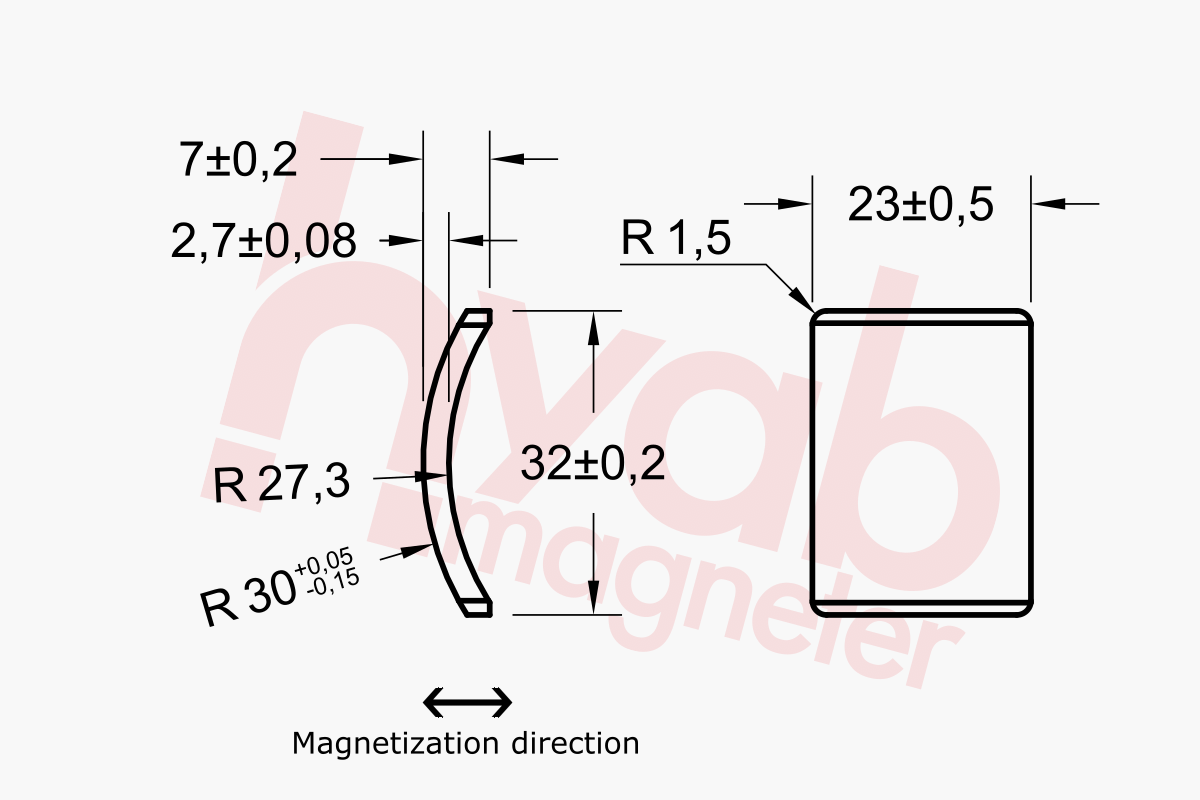

Segment Neodymium N30SH R30xr27,3x23mm Zn - magnetized on order

Artno: 45-0117-00

Quantity:

Add to quotation request

In stock

Magnet properties
Magnet type	Segment
Material	Neodymium
Coating	Zn
Magn. direction	Diametral
Outer R [mm]	30
Inner r [mm]	27.3
Thickness [mm]	23
Magnet data
Energy grade	N30SH
Temp. grade	SH
Max temp. [°C]	150
Remanence Br [kGauss]	10.8 - 11.2
Remanence Br [Tesla]	1.08 - 1.12
Coercivity HcB [kOe / kA/m]	10.1 / ≥804
Coercivity HcJ [kOe / kA/m]	20 / ≥1592
Energy product (BH)max [kJ/m3 / MGOe]	223 - 243 / 28 - 32

PDF to sheet

Description

This segment will be magnetized to customer wish, either North pole on outer (30) or inner radius (27,3).
