    Electromagnet rectangle

    The stated forces have been determined at room temperature on a plate in polished steel (S235JR according to DIN 10 025). 1kg ~ 10N. A maximum deviation of -10% compared to the specified value is possible in exceptional cases. Value is exceeded in general. Depending on the type of application (installation situation, temperatures, counter anchor etc.) the forces can be influenced enormously. The indicated values are serving as an orientation.

    Below products are available in both 24V and 12V variants.

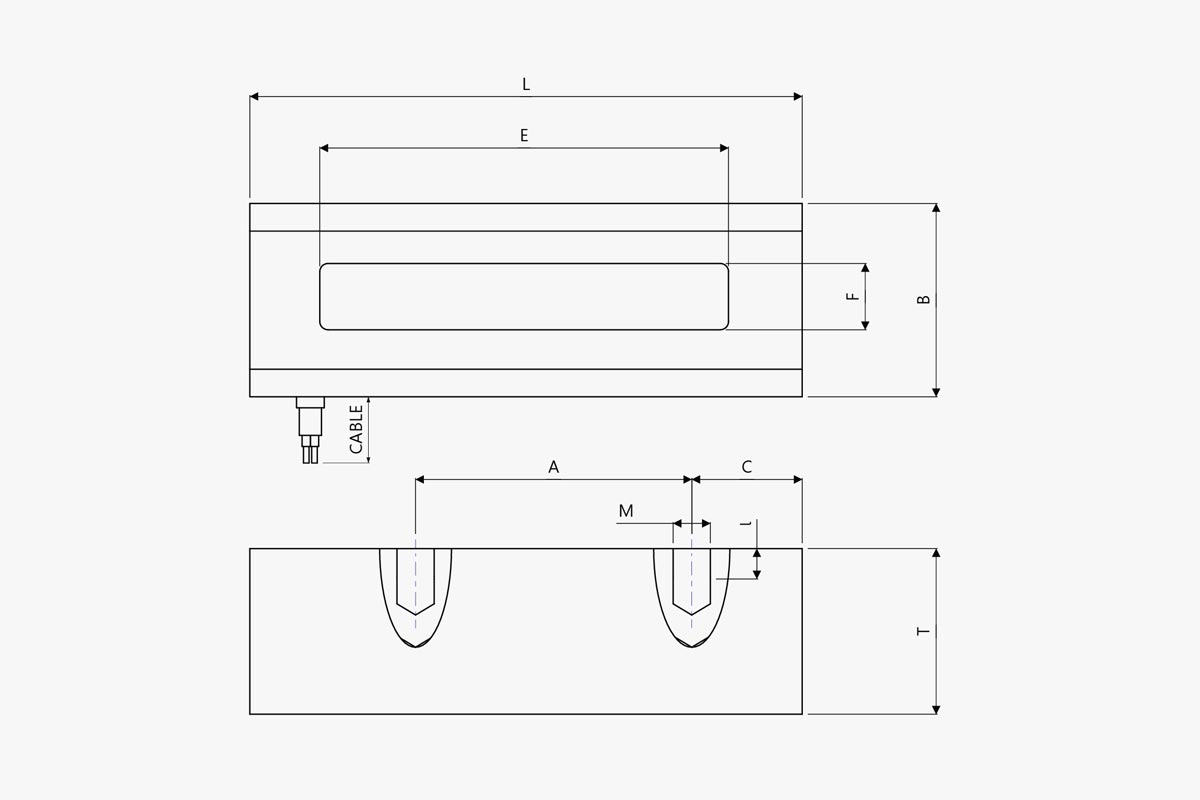

    Article no Length L [mm] Width B [mm] Thickness T [mm] Hold force [N] Thread M Thread MxL Power [W] Voltage [V] Request for offer
    M7150101.5 32 31 880 2xM6 M6x10 6.5 24DC
    Out of stock. EDT normally 1-2w
    71-0300201.5 32 31 2100 4xM6 M6x10 12.9 24DC
    Out of stock. EDT normally 1-2w
    71-0103530-24-JSRL100 35 30 1000 2xM6 M6x10 9.5 24DC
    In stock
    71-0094030-24-JSRL90 40 30 1000 2xM8 M8x15 10 24DC
    Out of stock. EDT normally 1-3w
    71-0042020-24-JSRL40 20 20 100 2xM4 M4x10 3 24DC
    Out of stock. EDT normally 1-3w
    71-0032020-24-JSRL30 20 20 40 2xM4 M4x10 2.4 24DC
    Out of stock. EDT normally 1-3w
    71-0604035-24-JSR600 40 35 7600 3xM8 M8x15 46 24DC
    In stock
    71-0204035-24-JSR200 40 35 2300 2xM8 M8x15 13 24DC
    Out of stock. EDT normally 1-3w
    71-0052520-24-JSRL50 25 20 250 2xM5 M5x10 3.5 24DC
    Out of stock. EDT normally 1-3w
    71-0052525-24-JSRL50 25 25 300 2xM5 M5x10 3.5 24DC
    Out of stock. EDT normally 1-3w

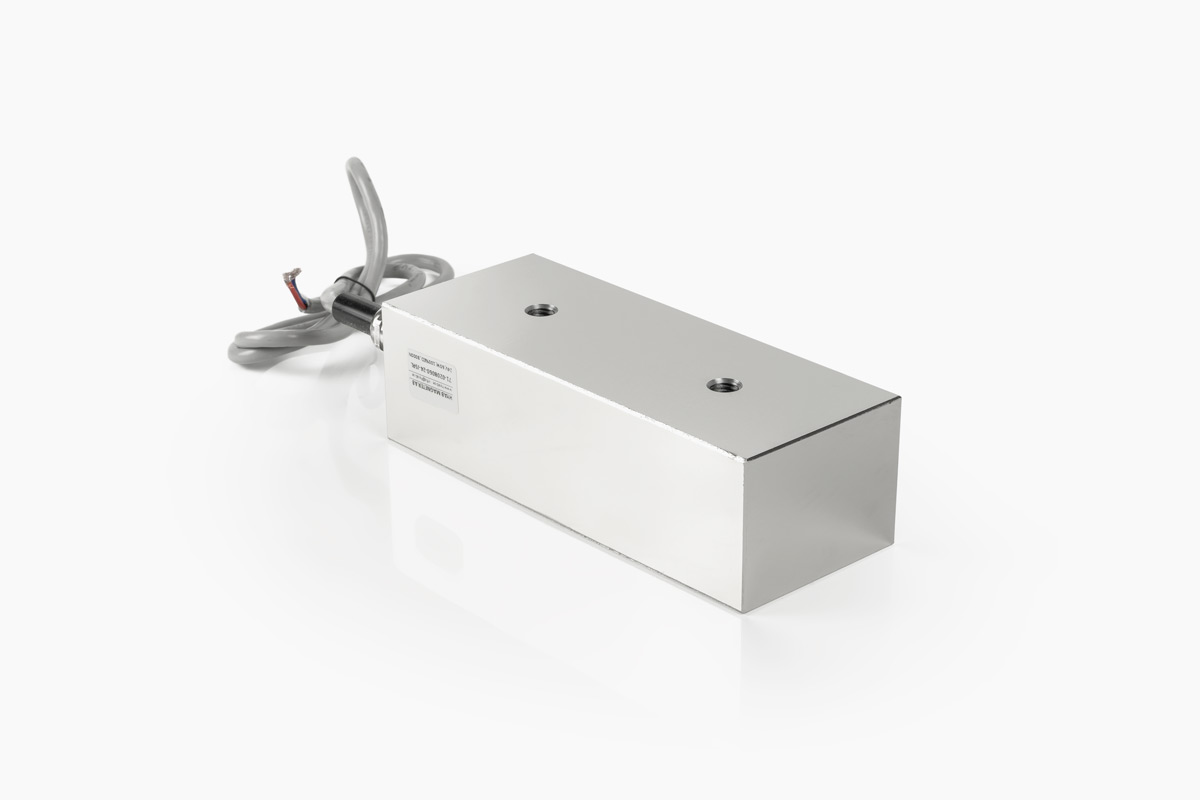

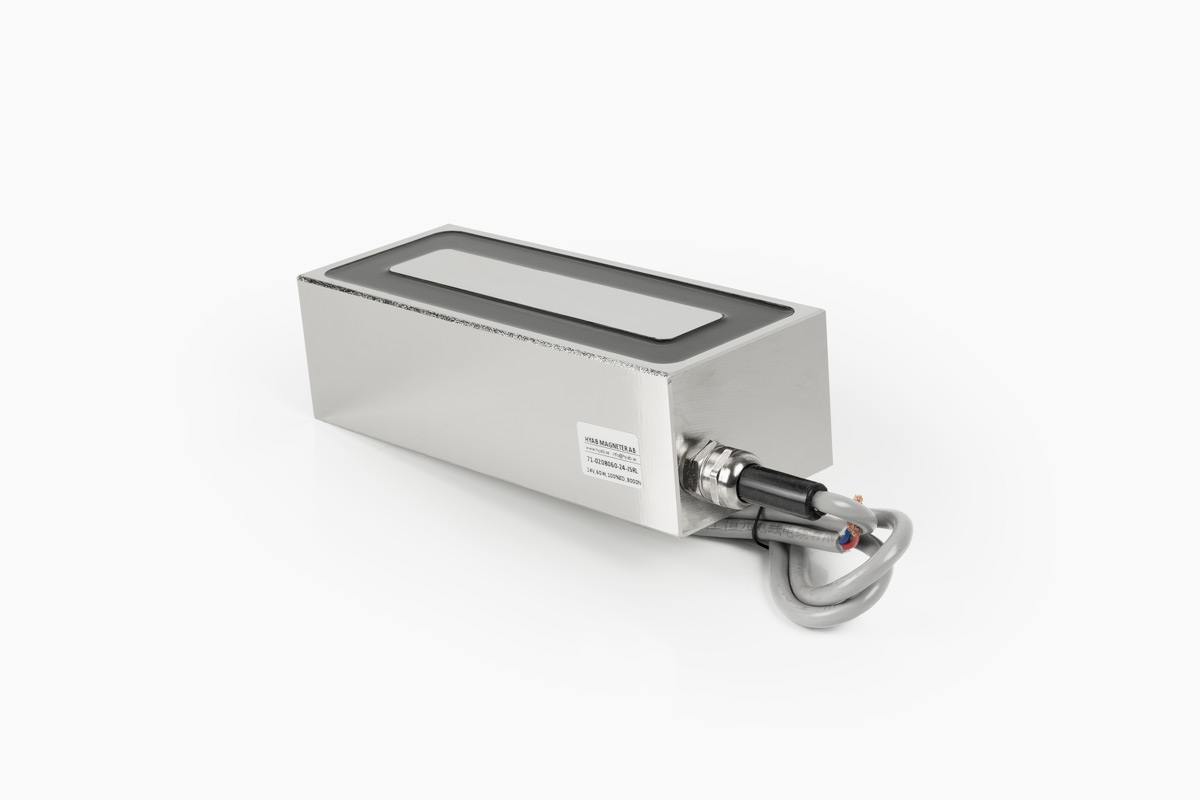

    71-0208060-24-JSRL200 80 60 8000 2xM12 M12x20 60 24DC
    In stock
    71-0063025-24-JSRL60 30 25 400 2xM6 M6x10 5 24DC
    Out of stock. EDT normally 1-3w
    71-0073530-24-JSRL70 35 30 800 2xM8 M6x15 7.5 24DC
    Out of stock. EDT normally 1-3w
    71-0084030-24-JSRL80 40 30 900 2xM8 M8x15 10 24DC
    Out of stock. EDT normally 1-3w
    71-0124030-24-JSRL120 40 30 1500 2xM8 M8x15 11 24DC
    Out of stock. EDT normally 1-3w
    71-0105040-24-JSRL100 50 40 1200 2xM8 M8x10 14 24DC
    Out of stock. EDT normally 1-3w
    71-0203025-24-JSR200 30 25 1800 2xM4 M4x12 14.4 24DC
    In stock
    71-0125040-24-JSRL120 50 40 2000 2xM8 M8x15 16.8 24DC
    Out of stock. EDT normally 1-3w
    71-02510060-24-JSRL250 100 60 10000 2xM12 M12x20 72 24DC
    Out of stock. EDT normally 1-3w
    71-0208040-24-JSRL200 80 40 5000 2xM12 M12x20 48 24DC
    Out of stock. EDT normally 1-3w
    71-0156050-24-JSRL150 60 50 3500 2xM10 M10x20 36 24DC
    Out of stock. EDT normally 1-3w
    71-0126050-24-JSRL120 60 50 2400 2xM8 M8x15 24 24DC
    Out of stock. EDT normally 1-3w
    71-0155050-24-JSRL150 50 50 3000 2xM10 M10x20 18 24DC
    Out of stock. EDT normally 1-3w
    71-7140401.5 32 31 4700 7xM6 M6x10 24 24DC
    Out of stock. EDT normally 1-2w
    71-4001151.5 60 50 2450 2xM8 M8x21 24 24DC
    Out of stock. EDT normally 1-2w
    71-4002201.5 60 50 3400 2xM8 M8x21 36 24DC
    In stock
    71-4003501.5 60 50 9300 4xM8 M8x21 75 24DC
    Out of stock. EDT normally 1-2w
